Balford · Catalogue

oxygen sensor housings

This oxygen sensor housings series in the Balford catalogue contains 46 deep drawn configurations with printed dimensions in millimetres. Every housing starts on the same deep drawing and stamping floor in Zhuji, Zhejiang.

46 configurationsPrinted height roughly 0.1–48.5 mmsus 301sus 304sus 310sus 316
Start an RFQ

Catalogue configurations · dimensions in mm

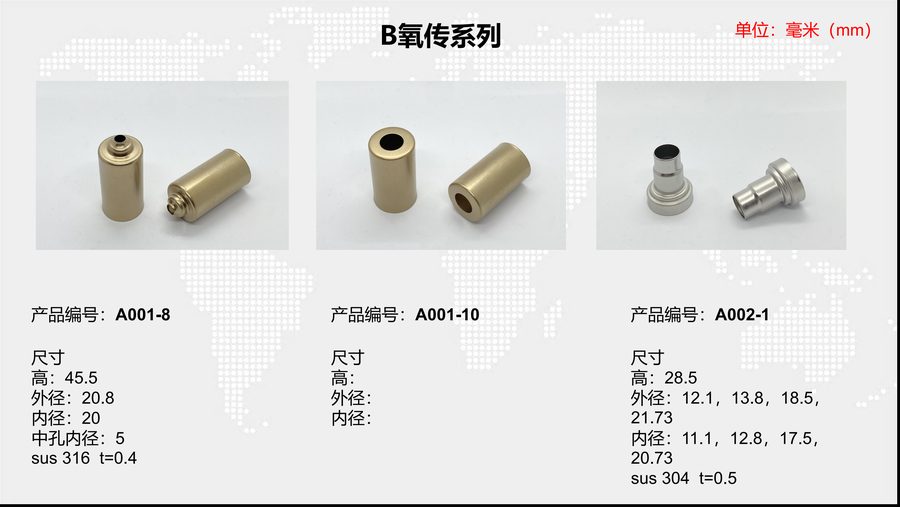

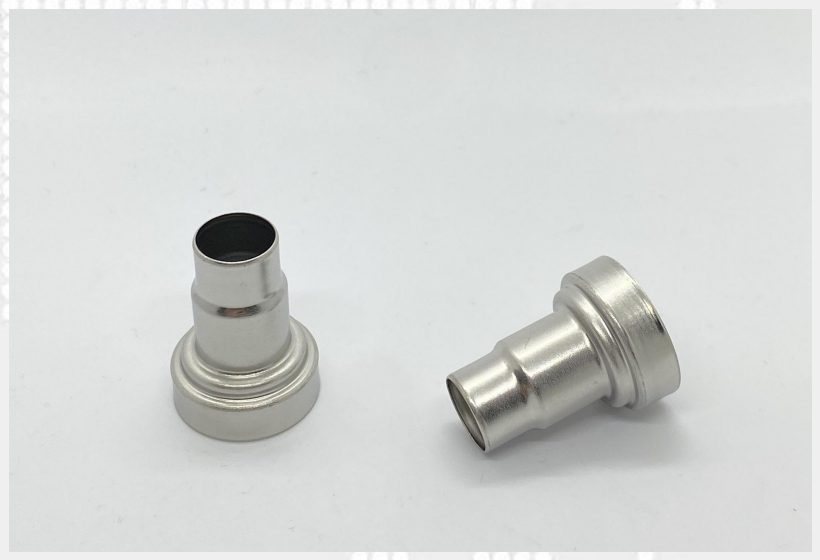

A002-1 sensor housing

A002-1

Height 28.5OD 12.1，13.8，18.5，21.73ID 11.1，12.8，17.5，20.73Material sus 304 t=0.5
Quote this part

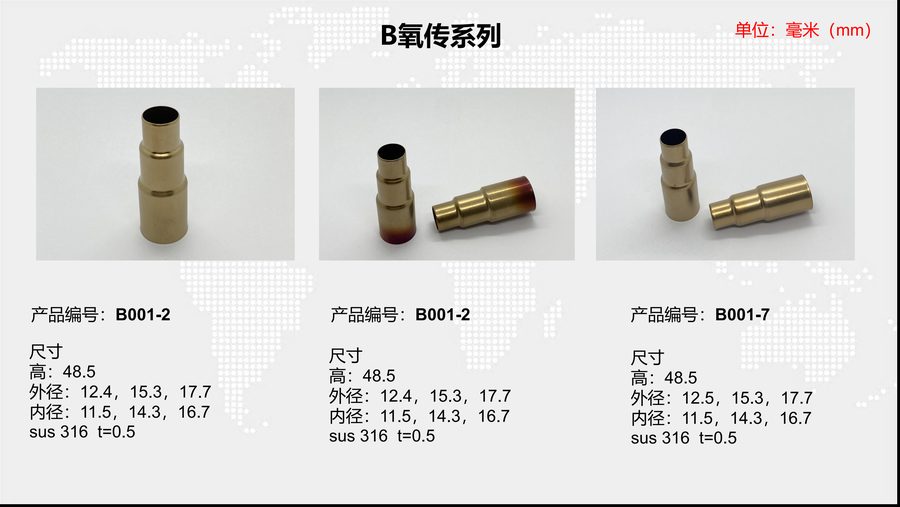

B001-2 sensor housing

B001-2

Height 48.5OD 12.4，15.3，17.7ID 11.5，14.3，16.7Material sus 316 t=0.5
Quote this part
B001-2 sensor housing

B001-2

Height 48.5OD 12.4，15.3，17.7ID 11.5，14.3，16.7Material sus 316 t=0.5
Quote this part

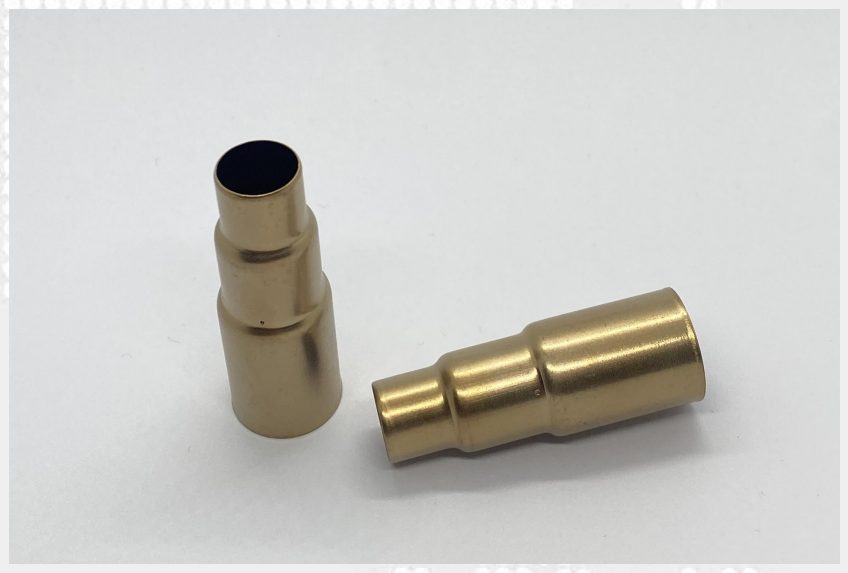

B001-7 sensor housing

B001-7

Height 48.5OD 12.5，15.3，17.7ID 11.5，14.3，16.7Material sus 316 t=0.5
Quote this part

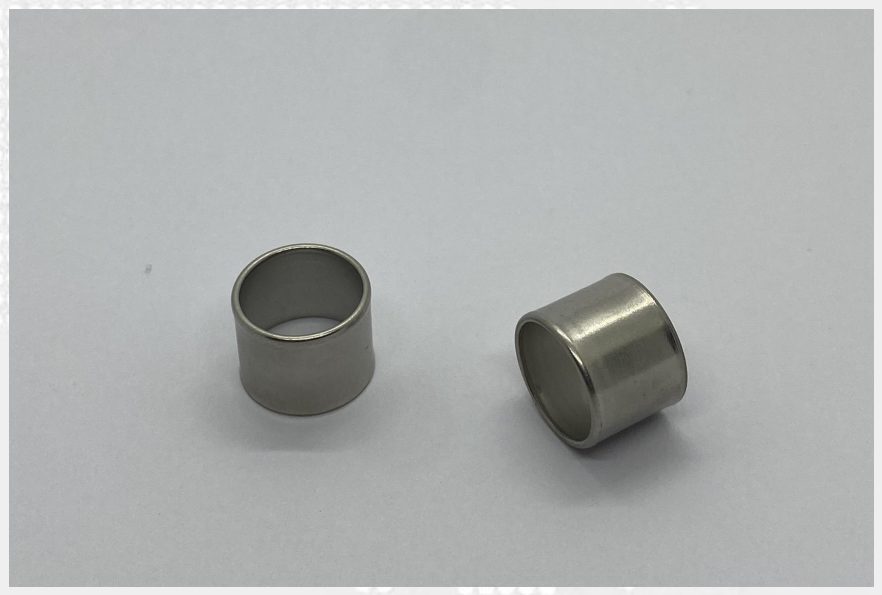

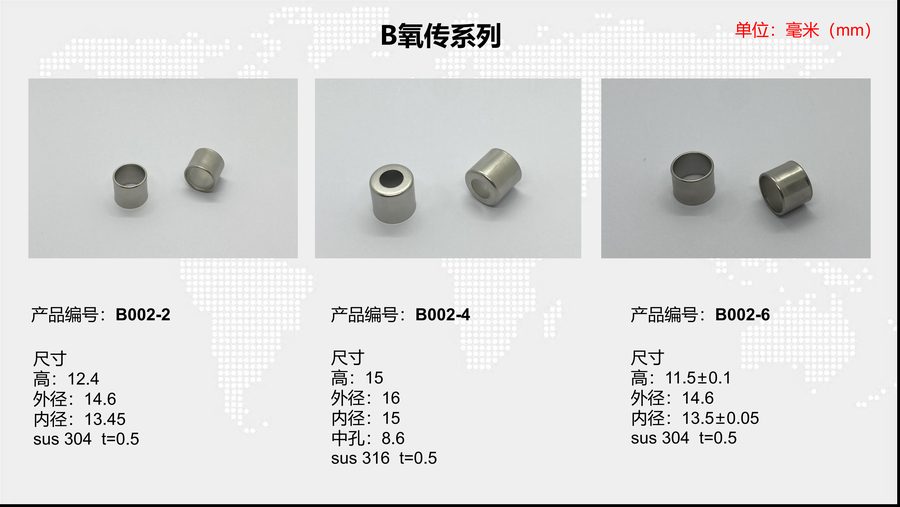

B002-6 sensor housing

B002-6

Height 11.5±0.1OD 14.6ID 13.5±0.05Material sus 304 t=0.5
Quote this part

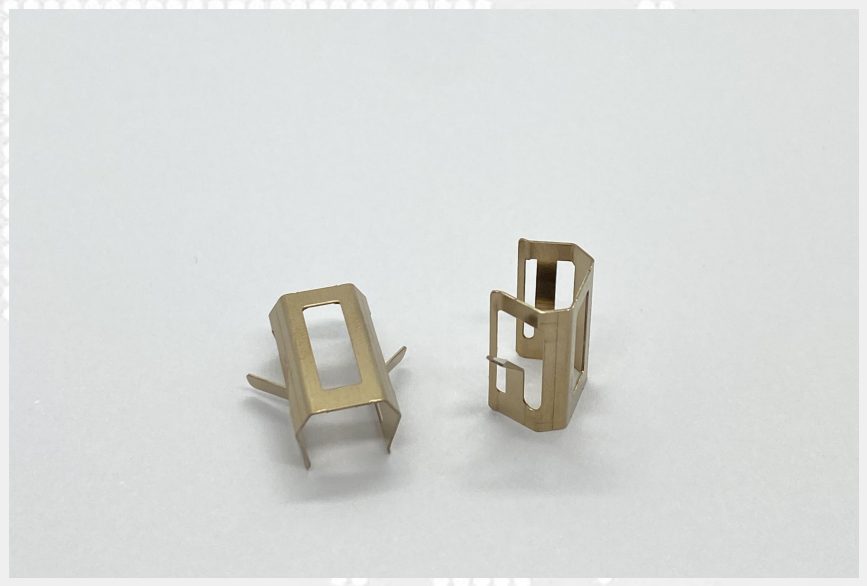

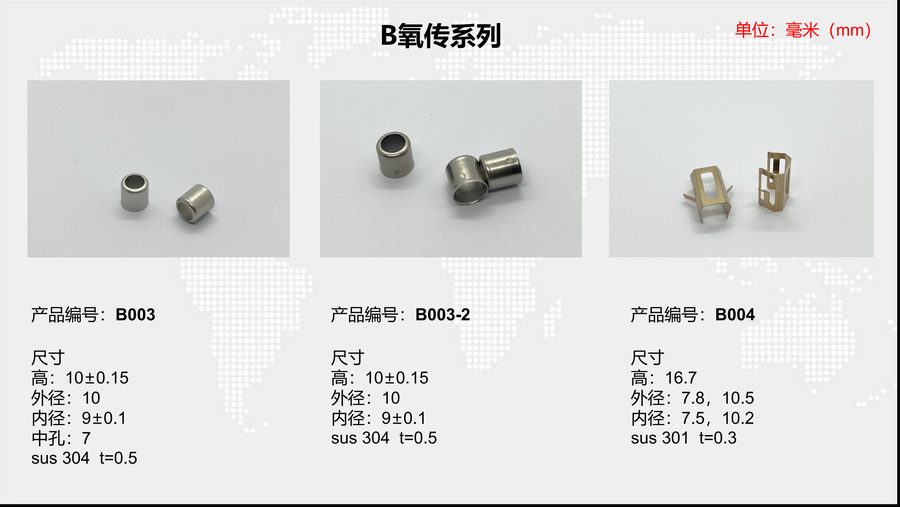

B004 sensor housing

B004

Height 16.7OD 7.8，10.5ID 7.5，10.2Material sus 301 t=0.3
Quote this part

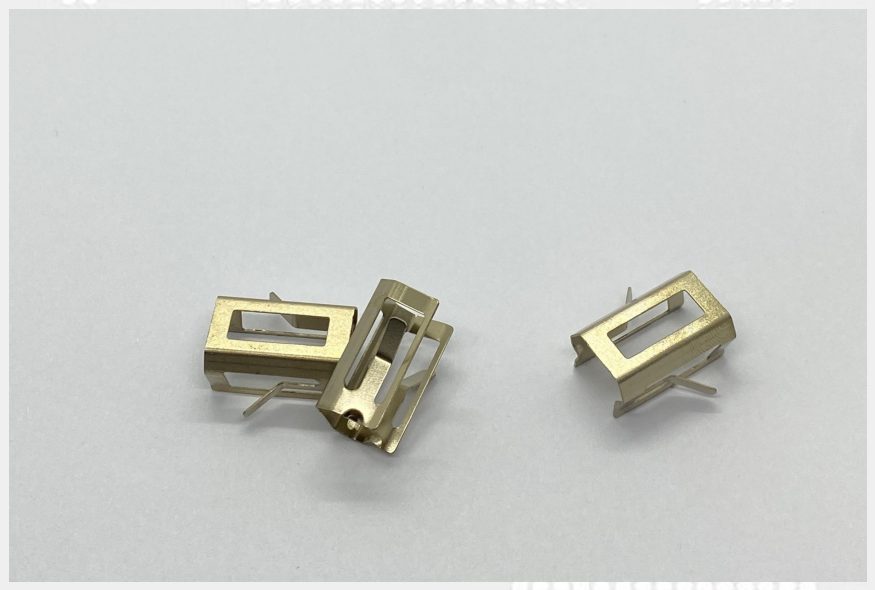

B004-2 （打点） sensor housing

B004-2

Height 16.7OD 7.8，10.5ID 7.5，10.2Material sus 301 t=0.3
Quote this part

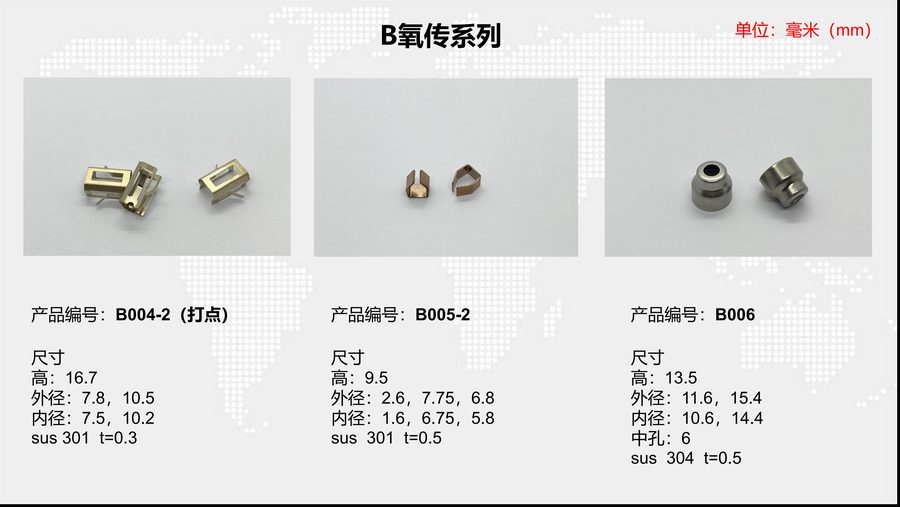

B005-2 sensor housing

B005-2

Height 9.5OD 2.6，7.75，6.8ID 1.6，6.75，5.8Material sus 301 t=0.5
Quote this part

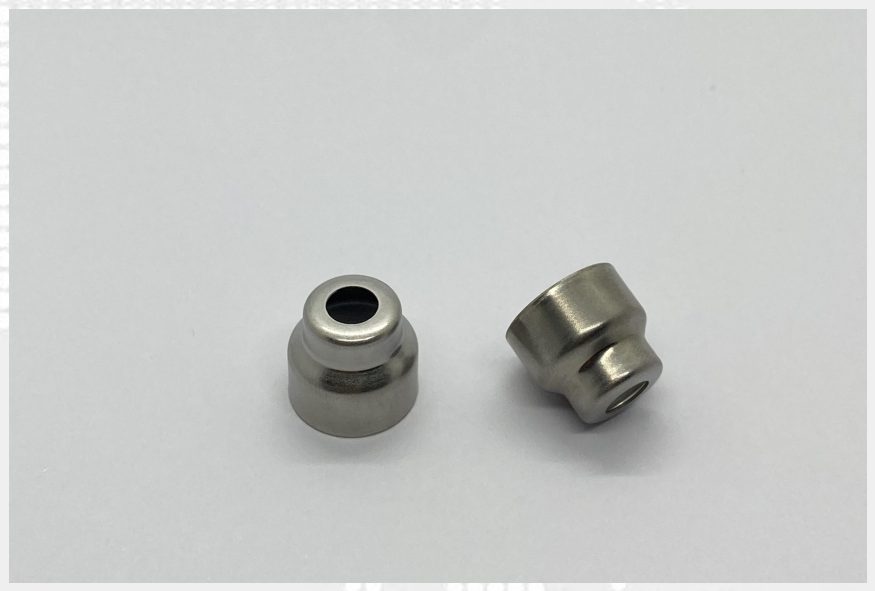

B006 sensor housing

B006

Height 13.5OD 11.6，15.4ID 10.6，14.4Material sus 304 t=0.5
Quote this part

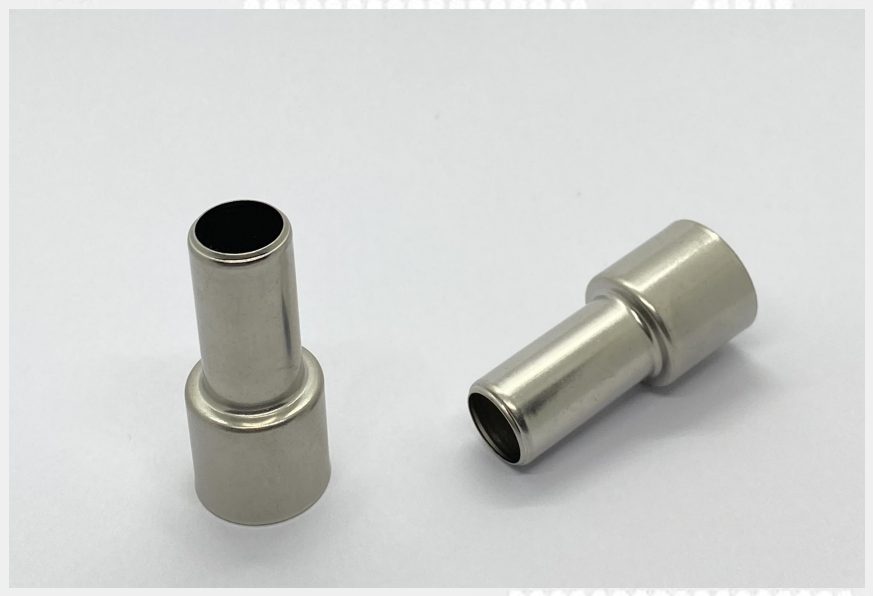

B010 sensor housing

B010

Height 42.3OD 12，13.1，18.5ID 11，12.1，17.5Material sus 316 t=0.5
Quote this part

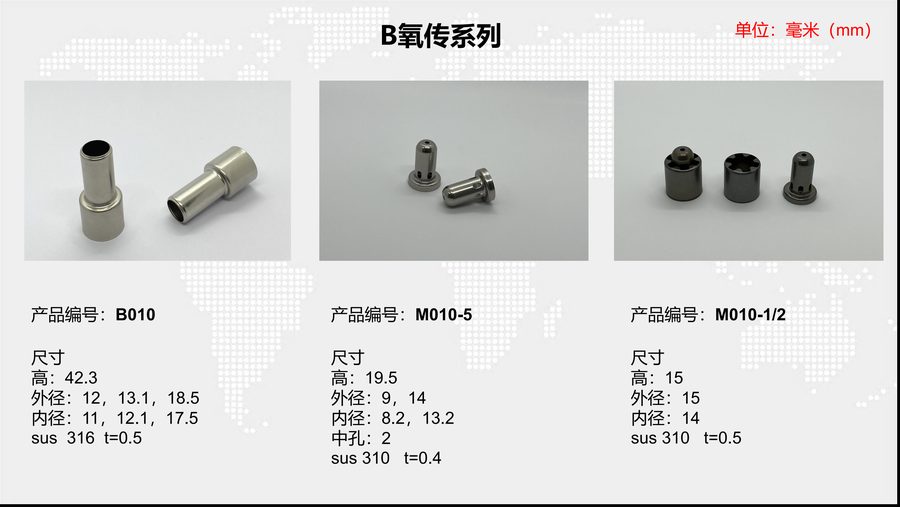

M010-5 sensor housing

M010-5

Height 19.5OD 9，14ID 8.2，13.2Material sus 310 t=0.4
Quote this part

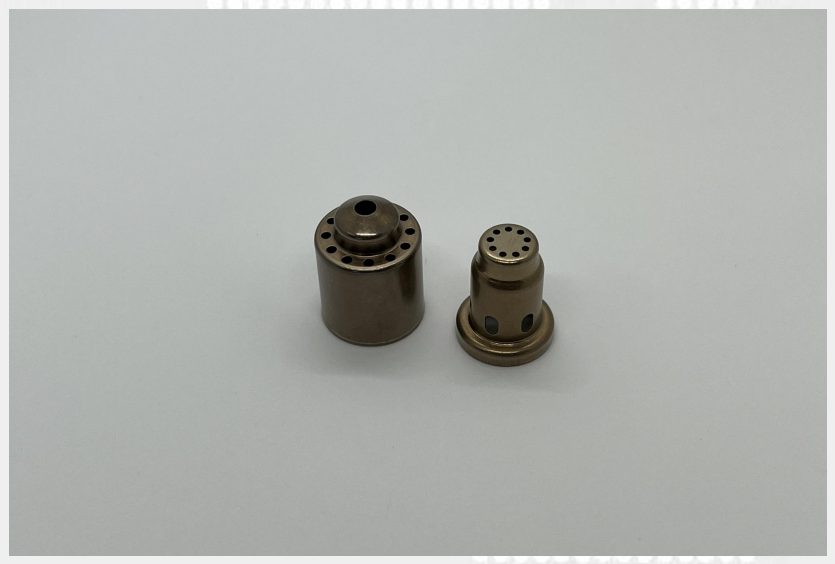

M011-1/2 sensor housing

M011-1/2

Height 19.9OD 9.1，15ID 8.1，14Material sus 310 t=0.5
Quote this part

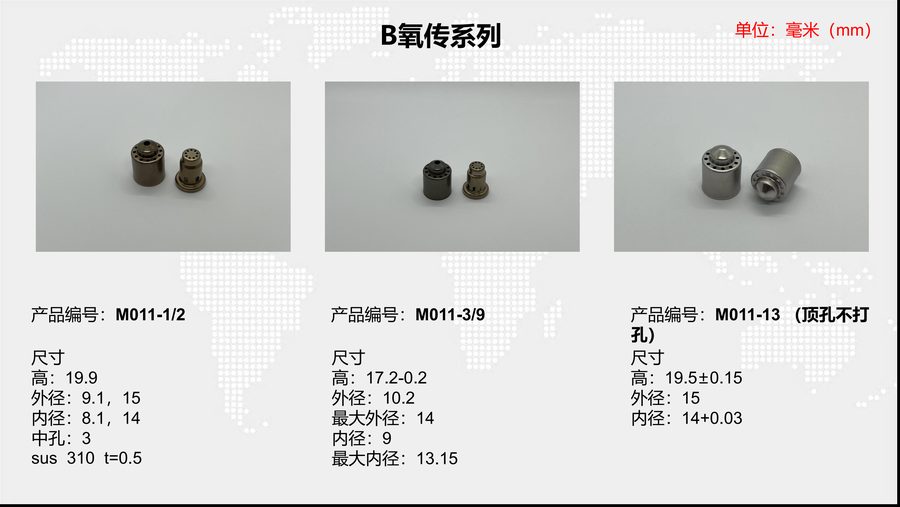

M011-3/9 sensor housing

M011-3/9

Height 17.2-0.2OD 10.2最大外径：14ID 9最大内径：13.15
Quote this part

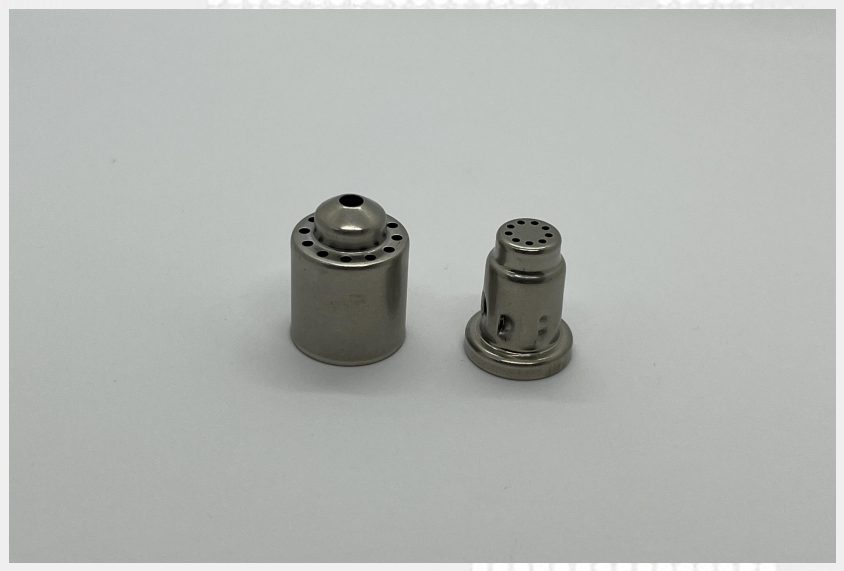

M011-1/10 sensor housing

M011-1/10

Height 17.7OD 8.2，10.2，14ID 7.4，9.4，13.2Material sus 310 t=0.4
Quote this part

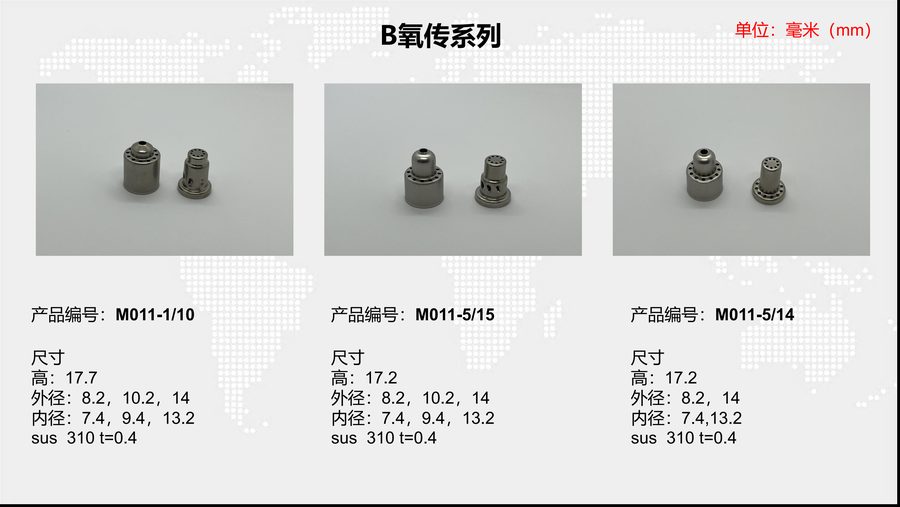

M011-5/15 sensor housing

M011-5/15

Height 17.2OD 8.2，10.2，14ID 7.4，9.4，13.2Material sus 310 t=0.4
Quote this part

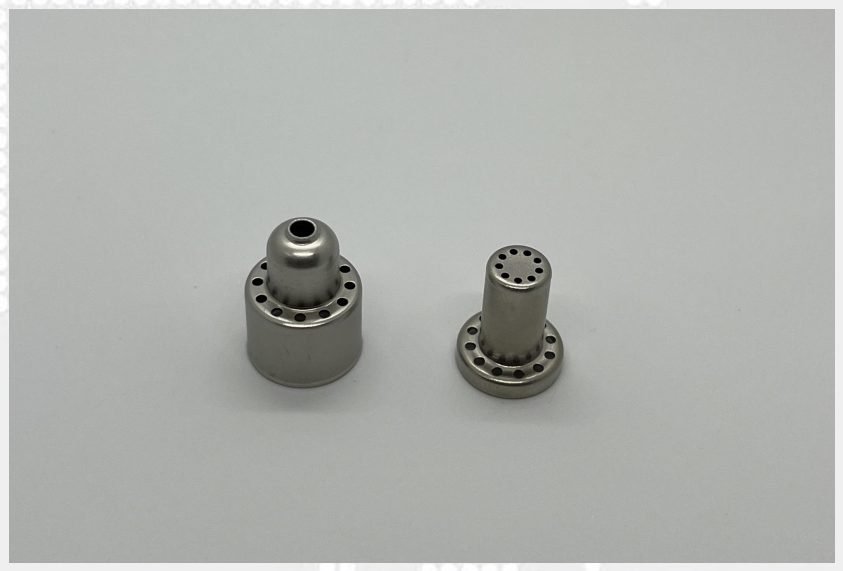

M011-5/14 sensor housing

M011-5/14

Height 17.2OD 8.2，14ID 7.4,13.2Material sus 310 t=0.4
Quote this part

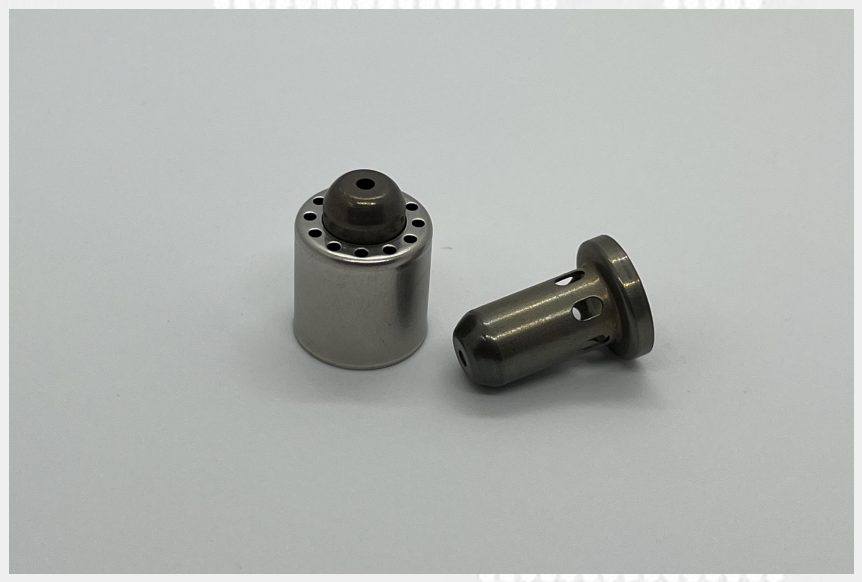

M011-7/M010-2 sensor housing

M011-7/M010-2

Height 19.5OD 9，14ID 8.2，13.2Material sus 310 t=0.4
Quote this part

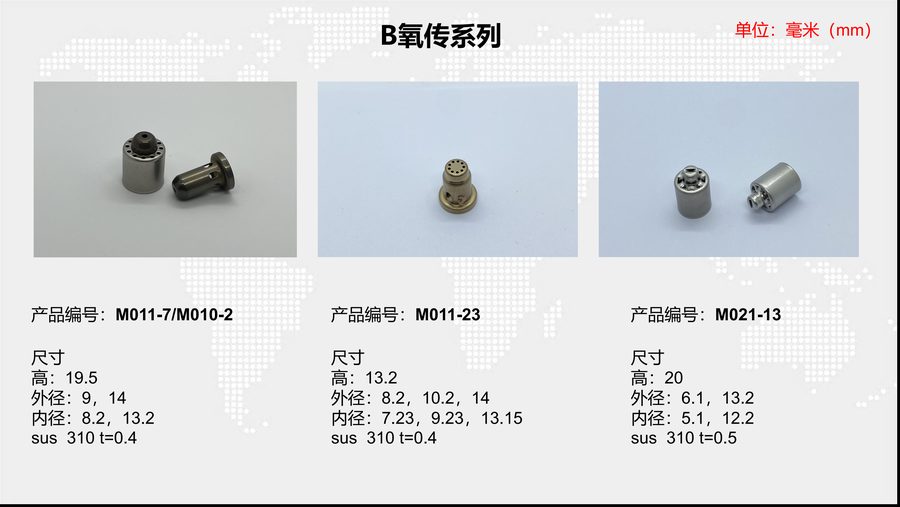

M011-23 sensor housing

M011-23

Height 13.2OD 8.2，10.2，14ID 7.23，9.23，13.15Material sus 310 t=0.4
Quote this part

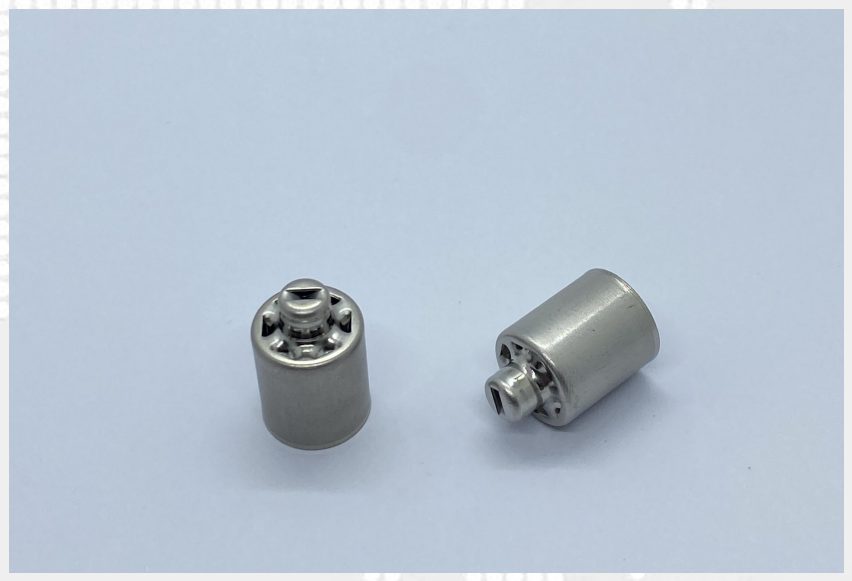

M021-13 sensor housing

M021-13

Height 20OD 6.1，13.2ID 5.1，12.2Material sus 310 t=0.5
Quote this part

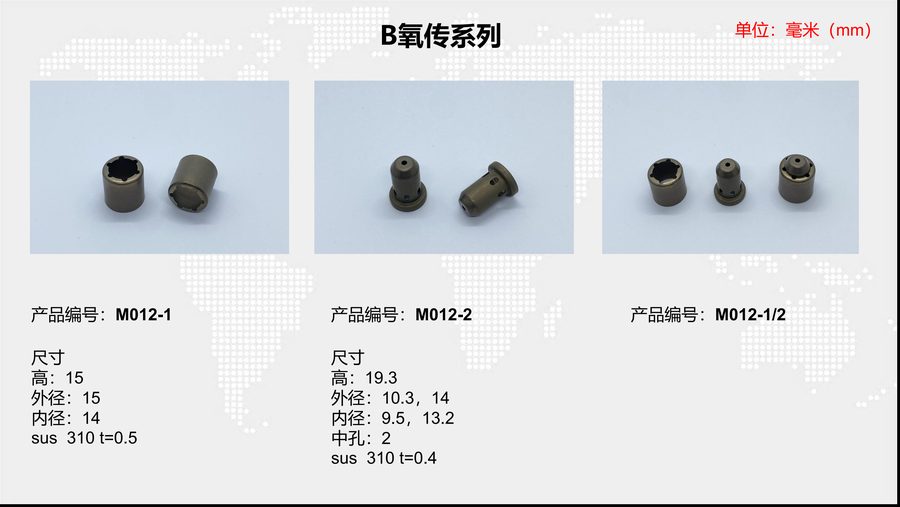

M012-2 sensor housing

M012-2

Height 19.3OD 10.3，14ID 9.5，13.2Material sus 310 t=0.4
Quote this part

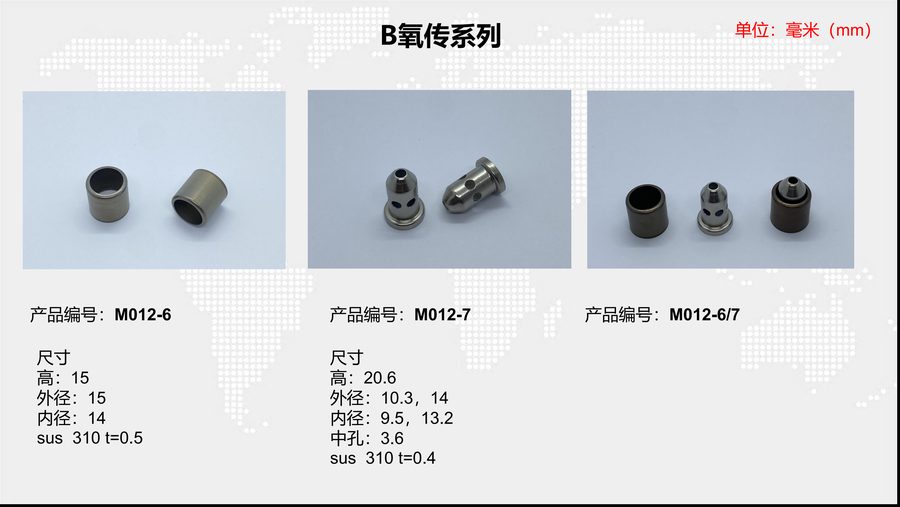

M012-7 sensor housing

M012-7

Height 20.6OD 10.3，14ID 9.5，13.2Material sus 310 t=0.4
Quote this part

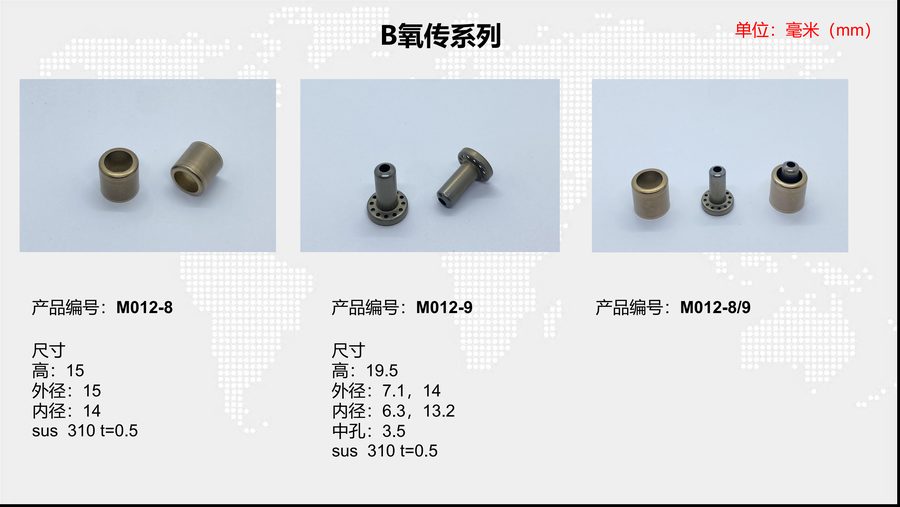

M012-9 sensor housing

M012-9

Height 19.5OD 7.1，14ID 6.3，13.2Material sus 310 t=0.5
Quote this part

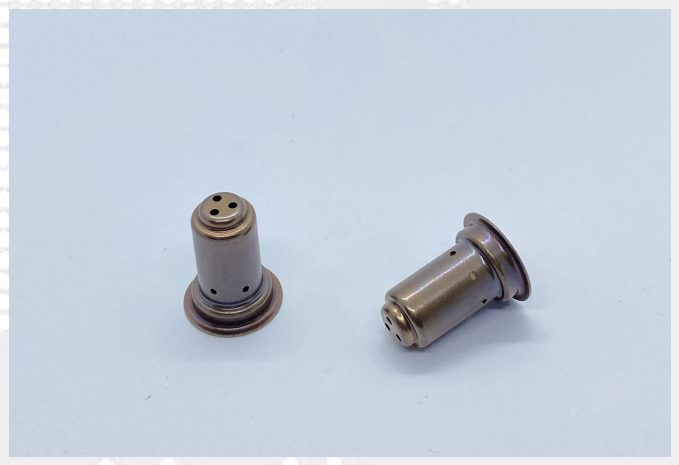

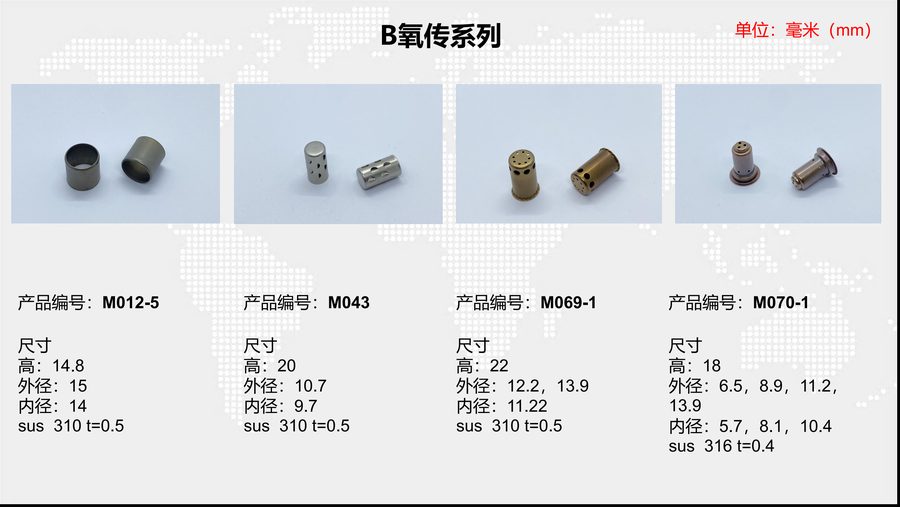

M070-1 sensor housing

M070-1

Height 18OD 6.5，8.9，11.2，13.9ID 5.7，8.1，10.4Material sus 316 t=0.4
Quote this part

Catalogue FAQ

What is included in the oxygen sensor housings catalogue?

The Balford oxygen sensor housings catalogue lists 46 deep drawn configurations. Printed dimensions include height, OD, ID, flange and center holes in millimetres.

Which materials are used for oxygen sensor housings?

sus 301, sus 304, sus 310, sus 316.

What size range does the oxygen sensor housings series cover?

Printed height roughly 0.1–48.5 mm.

Can I order a catalogue code or request a custom version?

Yes. Start an RFQ at rfq.balford.net with the catalogue code, or send your drawing for a DFM review — Balford can adapt hole patterns, lengths, materials and plating.

Need a different variant?

Send your drawing or reference a catalogue code — Balford reviews material, tolerances and finish before quoting.
