The Advantages and Process of Deep Drawing Aluminum Parts
Aluminum is one of the most requested materials for deep-drawn parts, and for good reason. It combines a strong strength-to-weight ratio with natural corrosion resistance and full recyclability, which makes it a practical choice across automotive, electronics, HVAC, and industrial equipment applications. At Balford, aluminum deep drawing is a core part of our metal stamping capability, and understanding why the material performs well — and how the process actually works — helps when you’re specifying a new part.

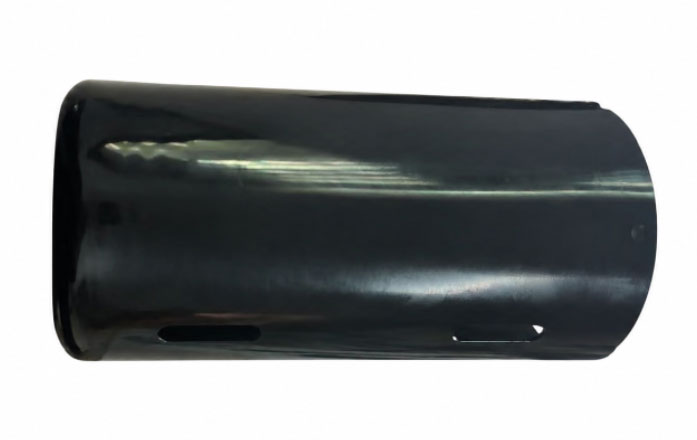

Why aluminum works well for deep-drawn parts
A few properties make aluminum a strong candidate whenever a component needs to be both light and durable:
- High strength-to-weight ratio — components that need to meet strict weight targets, such as automotive housings or aerospace-adjacent parts, can use aluminum in place of steel without giving up structural performance.
- Dent and impact resistance — deep-drawn aluminum holds up well against everyday impacts, which is one reason it’s a common choice for exterior panels and enclosures exposed to handling and knocks.
- Corrosion resistance — aluminum forms a natural oxide layer that protects it from environmental wear, reducing or eliminating the need for additional protective coatings in many applications.
- Recyclability — aluminum can be recycled repeatedly without losing its material properties, which matters for customers with sustainability requirements in their supply chain.
- Cost-effectiveness at scale — once tooling is in place, aluminum deep drawing suits both lower-volume runs and high-volume production, with unit costs dropping as volume increases.
How the deep drawing process works
Deep drawing differs from simple stamping or stretching because it reshapes a flat aluminum blank into a three-dimensional part where the depth is equal to or greater than the part’s width — a distinction that matters because aluminum, unlike more elastic materials, resists flow under compression and needs a controlled process to form correctly.
- Blank placement — a flat aluminum sheet (the blank) is positioned over the die cavity, with a blank holder applying even pressure around the edges while leaving the center area free for forming.
- Punch and draw — the punch presses the blank into the die cavity, pulling the material into shape through a combination of radial tension and tangential compression.
- Draw ratio control — because aluminum resists flow when compressed, the draw ratio (the relationship between blank diameter and punch diameter) has to stay within an acceptable range to avoid tearing, wrinkling, or excessive thinning at the corners.
- Multiple draw stages — deeper or more complex geometries are often formed across several draw stages rather than a single pass, with each stage incrementally reducing diameter and increasing height while keeping wall thickness consistent.
- Secondary operations — depending on the part, additional steps such as trimming, piercing, flanging, or CNC machining of critical surfaces follow the initial draw to bring the part to final specification.
Design considerations worth flagging early
A few factors are worth discussing with your manufacturing partner before finalizing a drawing:
- Target wall thickness and how much thinning is acceptable at the base and corners
- Required draw depth relative to part diameter, since this determines whether single or multi-stage drawing is needed
- Surface finish requirements, especially for parts that are visible or need to seal against another component
- Whether the part needs secondary machining for tight-tolerance features that forming alone can’t achieve
Addressing these upfront avoids costly tooling revisions later and shortens the path from prototype to production.
Aluminum deep drawing at Balford
Balford produces deep-drawn aluminum components for customers across automotive, HVAC, sensor, and industrial equipment applications, supporting projects from initial prototyping through CNC mass production under TS16949 and ISO9001:2015 standards. Our tooling and process engineering teams work with customers early in the design stage to confirm draw ratios, material specification, and finishing requirements before production begins.
