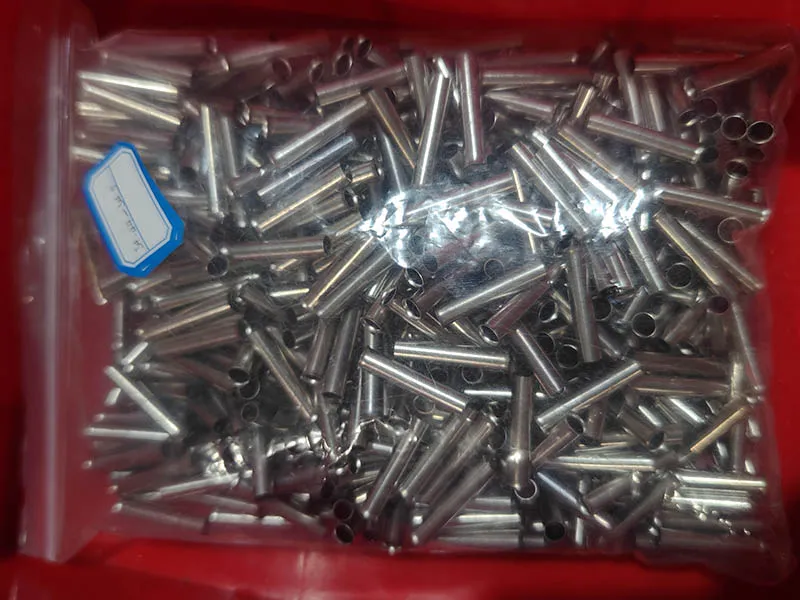

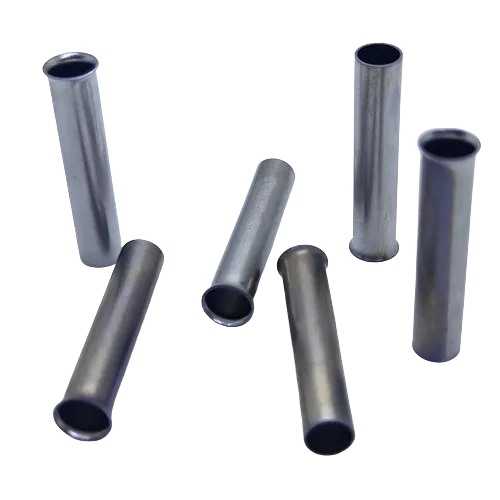

Connecting Pipe for Exhaust Gas Temperature Sensor Harness
What is this part? Connecting Pipe for Exhaust Gas Temperature Sensor Harness is a Tube manufactured from 304 stainless steel by Balford. Production process: Laser Cutting → CNC Turning. Key dimensions: Standard sizes available off the shelf; custom sizes to drawing. Key requirements: Protective tube for exhaust gas temperature sensor harnesses.
Metal Stamping
| Product Name | Connecting Pipe for Exhaust Gas Temperature Sensor Harness |
|---|---|
| Category | Tube |
| Process Flow | Laser Cutting→CNC Turning |
| Material | 304 stainless steel |
| Key dimensions | Standard sizes available off the shelf; custom sizes to drawing |
| Key requirements | Protective tube for exhaust gas temperature sensor harnesses |
Case Review
Balford supplies custom Connecting Pipes (protective tubes) for exhaust gas temperature sensor harnesses, with standard sizes available off the shelf. If the part matches your print you can pull from stock; otherwise we run a custom job to your design, with full DFM review before tooling.
What this case is
Balford supplies custom Connecting Pipes (protective tubes) for exhaust gas temperature sensor harnesses, with standard sizes available off the shelf. If the part matches your print you can pull from stock; otherwise we run a custom job to your design, with full DFM review before tooling.
At a glance
| Field | Published value |
|---|---|
| Application | Tube |
| Industry | Automotive |
| Material | 304 stainless steel |
| Manufacturing route | Laser cutting → Cnc turning |
| Key dimensions | Standard sizes available off the shelf; custom sizes to drawing |
| Key requirements | Protective tube for exhaust gas temperature sensor harnesses |
Manufacturing route
The published sequence for this part:
- Laser cutting
- Cnc turning
What decides the engineering
The published sequence below is the order the part actually runs in: the first operation decides the tooling, the later ones decide finish, inspection and packing.
Two things are settled before tooling: which dimensions actually matter to the assembly - a sealing face, a bearing seat, a coaxial diameter - and what tolerance the process can hold at those features. Everything else follows the general tolerance, which keeps tooling effort where it buys function.
Documentation and first article
A part like this is released with a first article inspection report against the confirmed drawing and a PPAP-aligned package at the level the customer's quality department asks for. Material certificates are kept per heat and IMDS entries are filed on request. The quality system is ISO 9001:2015 with process controls aligned to IATF 16949 requirements.
