Manufacturing Fuel Metering Unit Valve Housings: Material, Deep Drawing, and Precision Requirements
Fuel metering unit (FMU) valves — also known as metering proportional valves — sit at the fuel inlet of high-pressure common rail fuel pumps, where they regulate fuel supply and pressure under ECU control. They’re widely used in electronically controlled diesel engines running Bosch-type common rail injection systems, as well as in aircraft turbine fuel systems where precise flow control is equally critical.
What’s easy to overlook is that most FMU valve failures in the field trace back to two things: material selection and manufacturing precision in the valve housing and internal components. A metering valve doesn’t just need to look right on a drawing — it needs tight dimensional control, clean sealing surfaces, and a housing that holds its shape under repeated pressure cycling. Get any of those wrong at the manufacturing stage, and the downstream result shows up as drive-circuit fault codes, inconsistent fuel delivery, or premature wear — the kind of symptoms that eventually get diagnosed as “valve failure” in the field.
Why the housing matters as much as the electronics

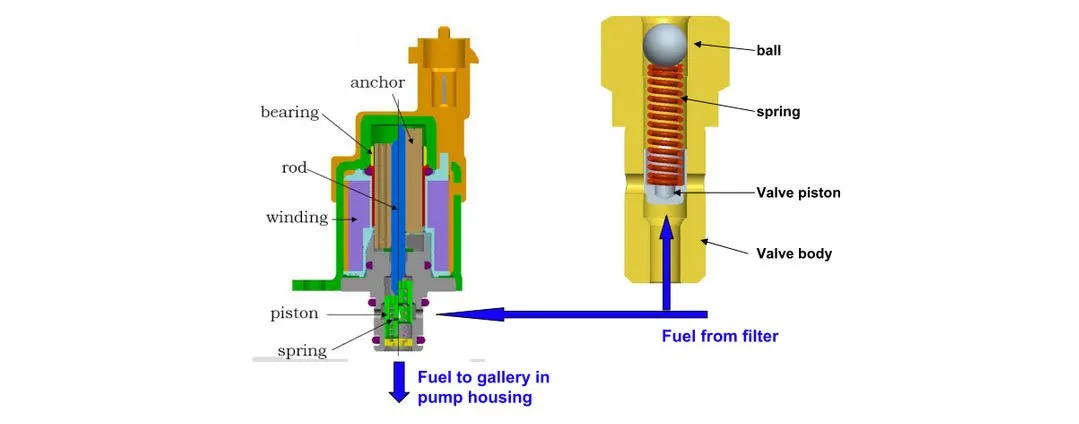

The metering valve and its companion overflow valve are the two components with the highest failure rate in a Bosch-style high-pressure fuel pump. When a fault is traced to one of these parts, the housing itself is often a contributing factor:
- Dimensional drift from forming — if the deep-drawn housing isn’t dimensionally stable, the plunger or armature inside won’t seat consistently, which affects the pressure the valve can hold.
- Surface finish on sealing faces — any roughness or micro-defects on the mating surfaces created during stamping or secondary machining can lead to internal leakage over time.
- Material consistency — housings are typically produced from high-grade iron or stainless steel via deep drawing. Inconsistent wall thickness or work-hardening during the draw can create weak points that fail under the pressure cycling these valves see continuously.
What precision manufacturing looks like for this part family
Producing a reliable FMU valve housing generally involves:
- Deep drawing to form the housing from coil stock, with tight control over wall thickness and draw depth to avoid thinning at critical points.
- CNC machining for the bore and sealing surfaces, where tolerances are typically held far tighter than the forming process alone can deliver.
- Surface treatment appropriate to the operating environment — corrosion resistance matters here, since these valves sit in a fuel-wetted, thermally cycled environment.
- In-process inspection at each stage rather than only at final QC, since a defect introduced during drawing is far more expensive to catch after machining and plating.
This is the same process chain Balford uses across our deep drawing and precision stamping lines for other pressure- and fluid-critical components — solenoid valve housings, sensor housings, and similar parts for automotive and industrial customers.
Sourcing considerations
If you’re specifying or sourcing FMU valve housings or similar precision-formed components, a few questions are worth asking any potential manufacturing partner:
- Can they hold consistent wall thickness through the full draw depth, not just at the flange?
- Is machining done in-house after forming, or handed off to a second supplier — and what does that do to lead time and tolerance stack-up?
- What inspection data do they provide per batch, not just per sample?
Balford manufactures precision deep-drawn and machined components for fuel system, solenoid valve, and sensor housing applications, supporting customers from prototype through mass production under TS16949 and ISO9001:2015 standards.
Interested in sourcing precision valve housings or similar deep-drawn components? Request a quote and our engineering team can review your drawing and specify the right process.
